Description

Home Theatre Enthusiasts Rejoice

With 9 channels of amplification, up to 4 independent subwoofers, Dolby Atmos and DTS:X, plus IMAX Enhanced and Auro-3D, the AVC-X3800H envelops larger living spaces in theatre-quality sound. Enjoy amazing 8K video quality and with HEOS® Built-in, wirelessly stream and share online music between rooms.

Enveloping 3D audio

Feel like you’re in the centre of the action with enveloping 3D sound.

Expert ready

You’ll be amazed at the available configuration options to best fit your space.

Geared for 8K

Enjoy amazing video quality from the latest 8K technology available.

Optimize your room

Enhance performance with room correction options from Audyssey (installed) or Dirac Live (optional upgrade available with future SW update).

High performance 9-channel amplifier

Discrete high-current amplifiers deliver up to 180W per channel – enough power to drive any speaker.

3D audio experience

Get enveloped in sound with Dolby Atmos®, DTS:X®, IMAX Enhanced and Auro-3D, along with Dolby Surround, DTS Neural:X and Auro-Matic upmixer to optimize legacy content.

Configuration flexibility

AVC-X3800H offers many setup options and flexibility to adjust your home theatre to meet your needs. Supports

Advanced 8K home theatre

8K video is supported on all six HDMI inputs and two of the three outputs. Enjoy easy video compatibility and great picture quality with HLG, HDR, Dolby Vision, HDR10+, and Dynamic HDR passthrough.

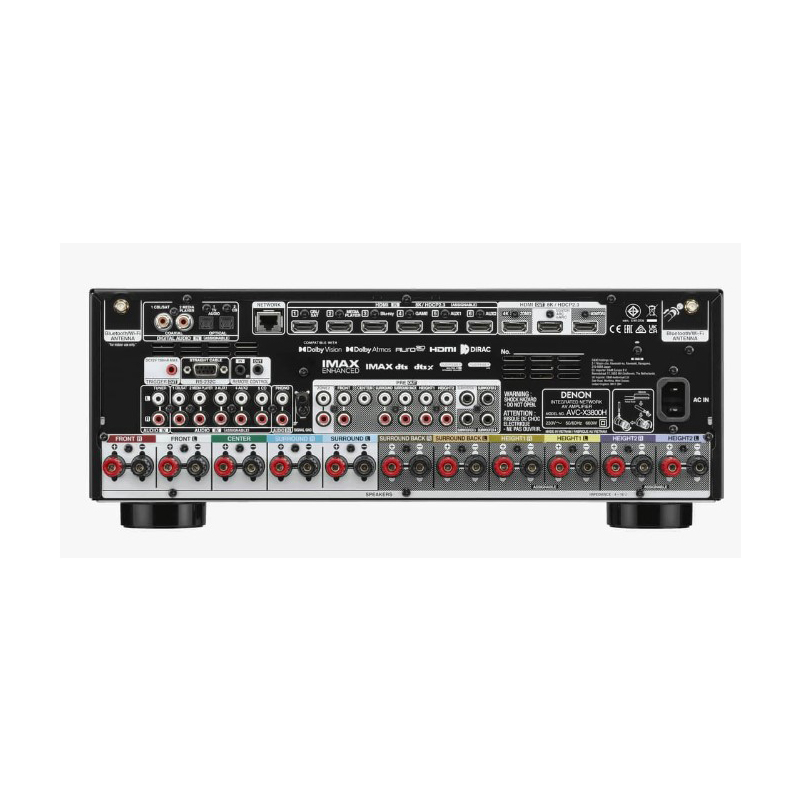

Inputs/Outputs

HDMI In, Out	6, 3
Multi-Room Video Out: Video, HDMI	No, Yes
Analog In, Out	6 / No
Phono (MM) In	Yes
Digital In: Optical, Coaxial	2 / 2
Multi-Room Out: Analog, Digital	1 / No
Multichannel Preout	Yes (11.4)
Subwoofer Out	4 (independent)
Speaker Terminal: Gold-Plated Screw, Regular Screw	No, Yes
Number of Speaker Terminals	11
Speaker A / B	Assignable
Bi-amp Drive	Assignable
Multi-Room Speaker Terminal	Assignable
Front Inputs: Audio, Composite, Digital (Opt), HDMI, USB	No, No, No, No, Yes
USB Audio, Made for iPod, Made for iPhone	Yes, No, No
AM/FM Tuner	No

General

System Remote Control	RC-1253
Pre-Programmed, Learnable, LCD Display	No, No, No
Power Consumption in W	660W
Power Consumption No-Sound (ECO On / Off) in W	60W/100W
Standby Consumption in W	0.1
CEC Standby Consumption in W	0.5
Network Standby Consumption in W	Less than 2.0
Maximum Dimensions Antenna:Horizontal:(W x D x H) in mm ( Antenna:Vertical :(W x D x H) in mm) 【 w/o Antenna :(W x D x H) in mm】	434 x 389 x 167 ( 434 x 389 x 236 ) 【 434 x 379x 167 】
Weight in kg	12.5
Carton Weight (inc. product) in kg	15.1

---
