Description
Achieve the Best Sound Possible
Dirac Live is an advanced room calibration solution that enables you to optimize the sound quality of your system. This world-class software is now available as an upgrade for CINEMA 40.
Excellence Only Begins with Performance
Built upon decades of rich heritage, designed with timeless style, and engineered for utmost performance, Marantz CINEMA Series are the foundation of the world’s most demanding home theaters.
Key Features
Peerless Performance
Immersive spaciousness, warm and rich tone, extraordinary detail and lifelike dynamics are legendary hallmarks of the Marantz sound.
Technology Leader
CINEMA 40 comes complete with the latest immersive audio formats, 8K video, room optimization, streaming, and more technology to simplify and elevate your enjoyment.
Exquisite Design
A modern expression of timeless design principles, CINEMA 40 features the iconic Marantz porthole, premium materials, and subtle sidelights that illuminate the front panel.
Performance
The Marantz Sound Master meticulously tuned CINEMA 40 for amazing performance with careful parts selection to create the Most Musical Sound in your home.
Style
Excellence is heard and seen. CINEMA 40 is meticulously crafted with authentic materials in a modern style befitting its rich heritage and stunning performance.
Customizability
Thoughtfully curated connectivity options and finetuning ability allow you to make CINEMA 40 your own.
Effortless

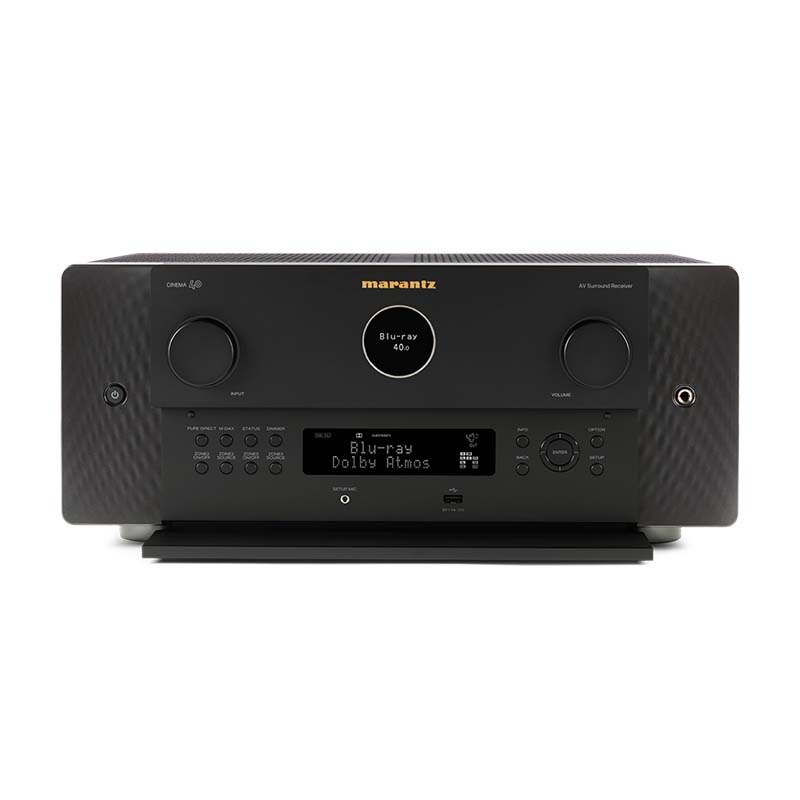

Included remote, accessible front-panel controls, and an intuitive on-screen setup process make you feel like an expert user right away.
Technical Specifications
Power Amplifier
Number of Powered Channels | 9 |
Power Output (8 ohm, 20 Hz – 20 kHz, 0.08% 2ch Drive) | |
Power Output (8 ohm, 20 Hz – 20 kHz, 0.05% 2ch Drive) | 125 W |
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) | 165 W |
Power Output (6 ohm, 1 kHz, 10% 1ch Drive) | 235 W |
70% Guarantee | Yes |
Discrete Power Amplifier | Yes |
Amplifier Topology | Class A/B |
Current Feedback Topology | Yes |
Bi-Amp Drive | assignable |
Streaming Services
HEOS Multi-room and Streaming | Yes |
AirPlay Audio Streaming | Airplay 2 |
Internet Radio | TuneIn |
Spotify* | Spotify Connect |
Pandora | Yes |
SiriusXM | Yes |
Other Streaming Services * | Amazon Music HD/ Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / SoundCloud / Mood Mix |
Roon tested | Yes |
Network Connectivity
Ethernet Ports | Yes |
Wi-Fi (include version / band) | Yes |
Bluetooth (Include version) | Yes |
Bluetooth Re-transmit for Bluetooth headphones | Yes |
Smart Home Integration And Control
Voice Assistant Compatibility | Alexa / Google Voice Assistant / Apple HomePod |
App for Smart Phones & Tablets (iOS & Android) | Marantz AVR Remote App, HEOS |
HEOS Multi-Room Integrated | Yes |
HEOS Link Compatibility: IR/ IP | Yes / Yes |
Multi-Room zones | 3 |
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog | 2 Ch / 2 Ch / Yes / Yes |
Zone Audio Output: Speaker / Preout | Yes / Yes |
Zone HDMI Output from HDMI Source | Yes |

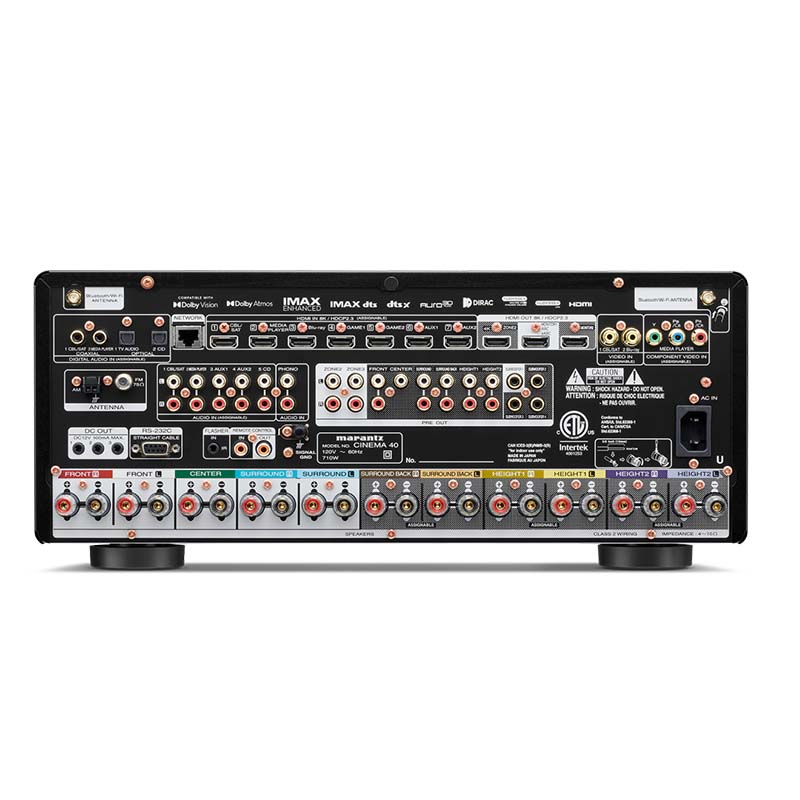

Control Connectivity | IP Control / RS232 Control / Web Control / App Control |
IR Flasher In | Yes |
Marantz Remote Bus | Yes |
DC Trigger Output | 3 |
HDMI Diagnostics | Yes |
General
Available Colors | Black/Silver-Gold |
Metal Front Panel | Yes |
System Remote Control | RC048SR |
Power Consumption in W | 710 |
Power Consumption No-Sound (ECO on/off) in W | 65 / 110 |
Standby Consumption in W | 0.2 |
CEC Standby Consumption in W | 0.5 |
Network Standby Consumption in W | Less than 2.0 |
Maximum Dimensions Antenna:Horizontal:(W x D x H) in inches Antenna:Vertical :(W x D x H) in inches W/o Antenna:(W x D x H) in inches |
17.3 x 16.2 x 7.3 17.3 x 16.2 x 10 17.3 x 15.8 x 7.3 |
Weight in lbs. | 33.3 |
What’s in the box | Main unit, remote control, batteries, wire labels, quick start guide, Audyssey microphone, microphone stand, 2 External Detachable Antenna, AC cord |
Datasheet :Marantz Cinema 40
